Drum

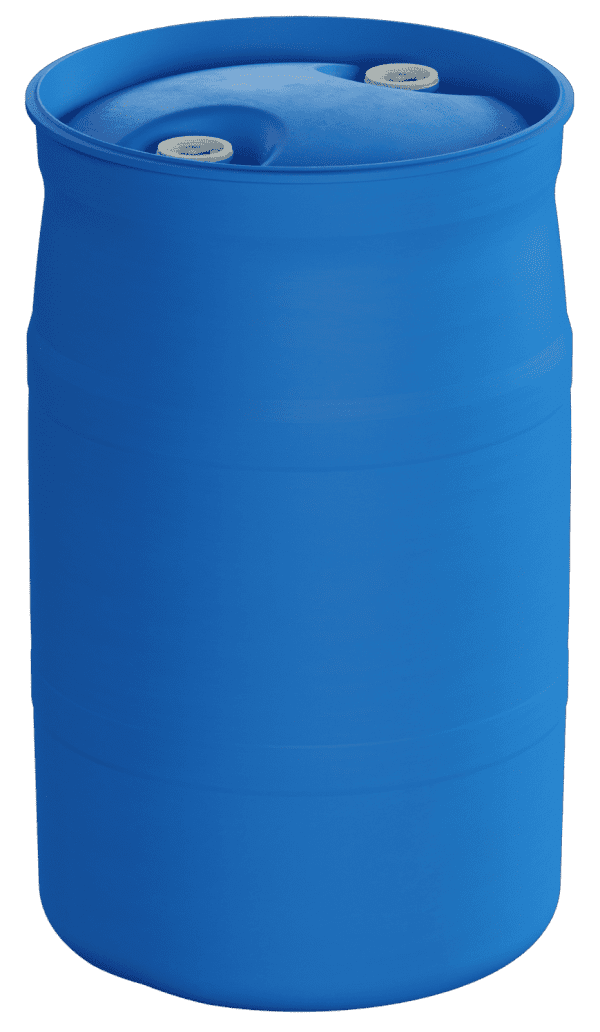

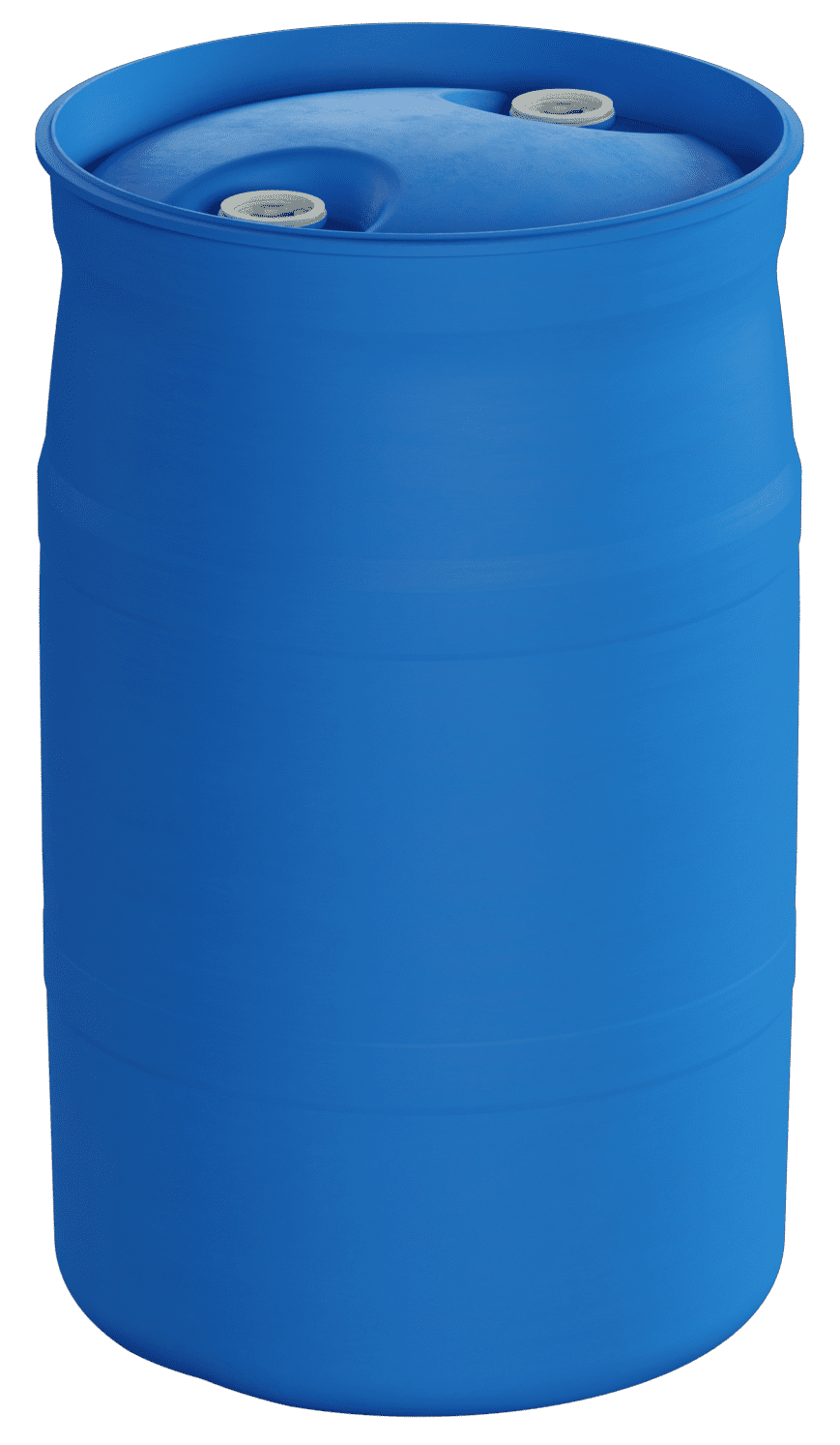

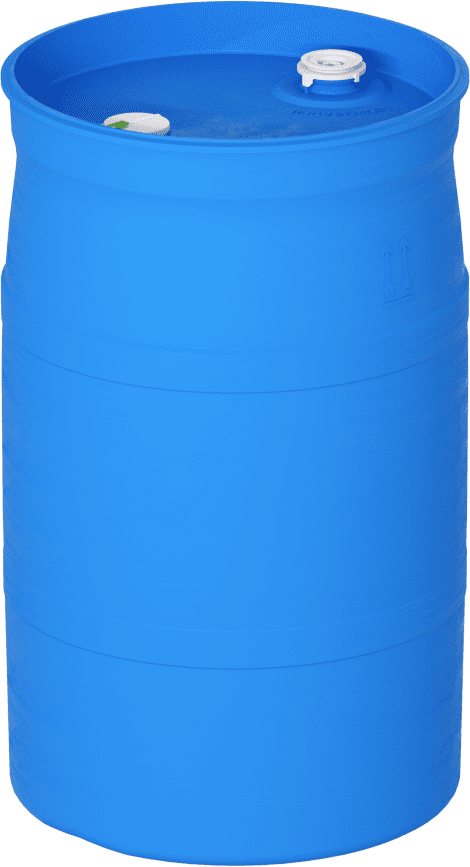

UC ULTRA DRUM

The UC Ultra Drum combines cost-efficiency, high quality, and reusability with full UN certification – ideal for the safe handling of high-purity liquids in the chemical, pharmaceutical, and semiconductor industries.

Advantage / application

UC ULTRA DRUM

  • Semiconductor-grade purity: Ultra-low trace metals and particles in the inner liner (< 100 ppt)

  • UV-stabilized outer layer: Blue color for easy identification and extended material durability

  • Clear traceability label: Reliable product tracking and identification

  • UN certified (Packaging Group II / Y): Safe for regulated hazardous materials

  • Test pressure: 200 kPa: High structural integrity under pressure

  • Fully recyclable design: Environmentally friendly and sustainable solution

Test pressure: 200 kPa

Ultra-low particle level – <100 ppt

UN & DOT certified – Packaging Group II (Y)

Multiway Solution

ALL PLASTIC CONTAINER
  • No steel components
  • Corriosion-free
  • Energy absorbing
100% RECYCLABLE
  • Only one construction material – easy to remanufacture
  • Reusable container

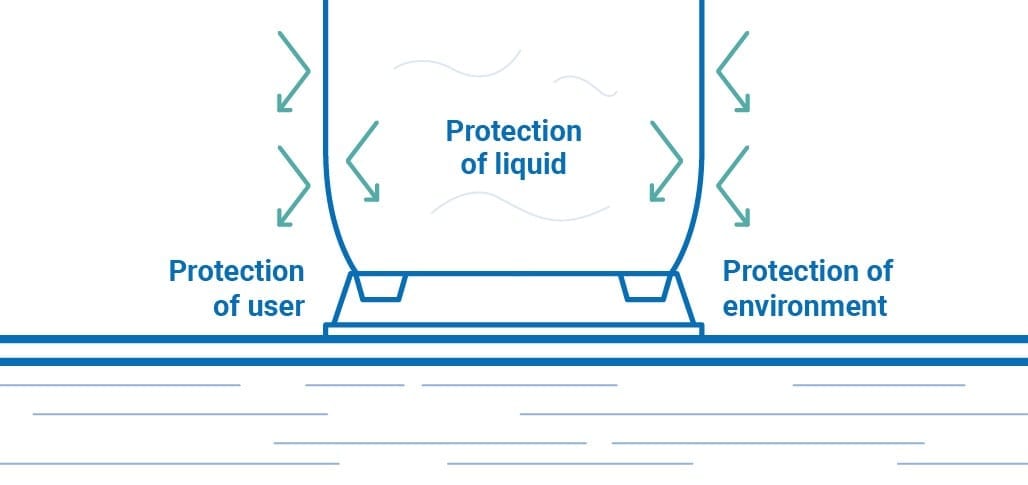

Highest safety standards
  • Secondary containment
  • UN-certified

Accessories / Equipment

UC ULTRA DRUM

Dip tube, non-conductive
  • for POLY IBC
  • for UC drum
  • option to equip with bellows for minimum heel
  • Key Code system
DISPENSE/FILL HEAD, NON CONDUCTIVE
  • for POLY IBC UC/UC-S 1000
  • for UC barrel
  • filling and disepense with simultaneous ventilation of the container
UNIVERSAL BUNG WRENCH, NON CONDUCTIVE
  • for safe opening and locking of immersion tubes and screw plugs

Technical specifications

Standard colours Blue
Nominal capacity 200 liter / approx. 53 gal.
Height 580 x 960mm / approx. 22.9 in. x 37.6 in.
Bungs 2x S62 x 5mm (1 vented and 1 non-vented)
